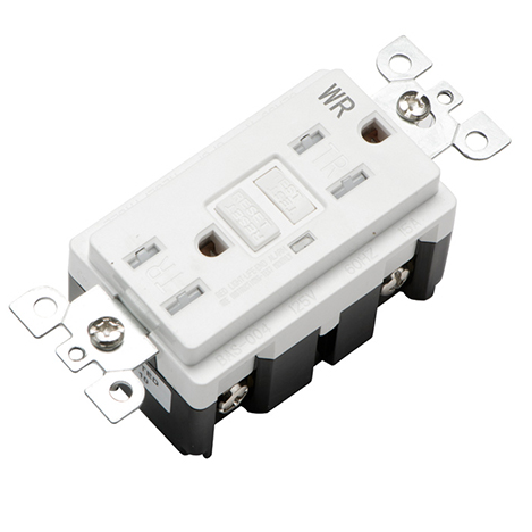

GFCI 15A 1 LIGHT
P/N:HY-01003
GFCI 15 Product application:
Product for commercial,household,lighting
Meet the standard:
UL498CSA-C22.2 NO.42
Housing material flame retardant grades UL94-V2
Specifications、Electrical performance、Amboent temperature:
Rated working current:15A/20A
Rated working voltage:125V
Power frequency:60Hz
Tripping threshold:5mA Tripping time <25ms
Surge current:6000V / 3000A 6000V / 10KA
Electric strength:Pressure resistance 1500V 50Hz Duration 1 Min
Working temperature:-35°C~66°C
Insulation resistance:>50MΩ (DC500V)
Short-circuit current:10KA
